Assembly Kits for Tank Inside Heaters
Ord.-No. | Type | Description | Capacity at |
8000-20.01 | TBS-1 | Tank inside heating with 1 heating loop for tank capacity up to 1.000 l | 0,2 kw |
8000-20.02 | TBS-02 | Tank inside heating with 1 heating loop for tank capacity up to 2.000 l | 0,35 kw |
8000-20.05 | TBS-05 | Tank inside heating with 1 heating loop for tank capacity up to 5.000 l | 0,55 kw |
8000-20.10 | TBS-10 | Tank inside heating with 1 heating loop for tank capacity up to 10.000 l | 0,7 kw |
8000-20.20 | TBS-20 | Tank inside heating with 1 heating loop for tank capacity up to 20.000 l | 0,9 kw |
8000-20.40 | TBS-40 | Tank inside heating with 1 heating loop for tank capacity up to 40.000 l | 1,4 kw |
8000-20.60 | TBS-60 | Tankinnenbeheizung with 2 Heizkreisen | 2,2 kw |
8000-20.80 | TBS-80 | Tank inside heating with 2 heating loop for tank capacity up to 80.000 l | 2,6 kw |
8000-20.00 | TBS-100 | Tank inside heating with 2 heating loop for tank capacity up to 100.000 l | 3,0 kw |

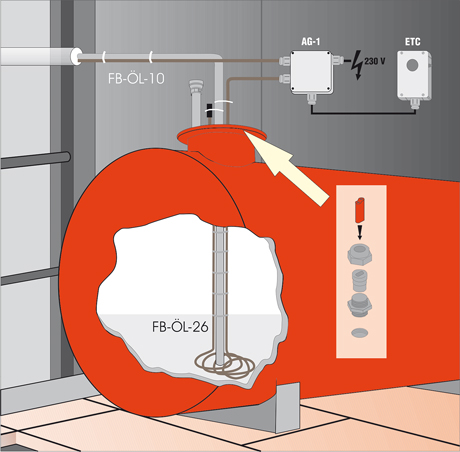

Heating of the oil-fired heating:
Heating of the oil-fired heating:
In addition to the assembly kit, a thermostat ETC 220/231 is required, from TBS-60 a contactor or another thermostat for the 2nd heating loop will be required.
An automat C16A and a FI-protecion switch with 30 mA release current shall be provided to protect the heating loops!
See also menu item: Trace Heating Systems for Pipes - Freeze Protection
