Thin-bed Heating System with low voltage protector 24 Volt

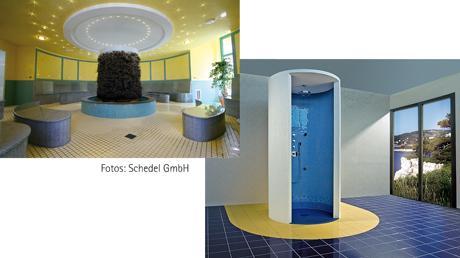

Especially for deploying in wet areas like tiled and barrier-free showers, in vapour saunas, , sauna benches, wellness loungers, shower seats or in wall sections. We also use our proven selve-adhesive heating pads with one-sided connection (acc. EN 60335-2-96) in this heating system.
The heating pads and the temperature controller are supplied with voltage via a specific safety isolating transformer. (Protective Extra Low Voltage - System-PE)
bamaheat® thin bed electric heating pads EM-24 (24 Volt), single pads
Ord.-No. | Description | Plane | Width/Length | Total capacity |
8000-46.05 | EM-24-05 | 0,5 | 50 x 100 | 75 |
8000-46.07 | EM-24-0,75 | 0,75 | 50 x 150 | 113 |
8000-46.10 | EM-24-1,0 | 1,0 | 50 x 200 | 150 |
8000-46.15 | EM-24-1,5 | 1,5 | 50 x 300 | 225 |
8000-46.20 | EM-24-2,0 | 2,0 | 50 x 400 | 300 |
8000-46.25 | EM-24-2,5 | 2,5 | 50 x 500 | 375 |
Note: 12 Volt versions (caravans/motorhomes) are also available! Please consult us for information! Other sizes are available by request.
